ASME SA-556M C2 无缝冷拉管 | 高压给水加热器管
适用于 300MW、600MW 及更大发电站给水加热器的高性能-管。符合国际标准，出色的高压应用，年供应能力超过10,000吨，满足您的项目需求。
产品信息
ASME SA-556M C2 无缝冷-拉管 |高压给水加热器管
ASME SA-556M C2 无缝冷-管由珠光体碳钢制成，专门为管式给水加热器系统的高压服务而设计。以下是此类产品的详细介绍：
产品概述
ASME SA-556M C2 无缝冷-管由珠光体碳钢制成，专为管式给水加热器系统中的高压服务而设计。-这些管子严格按照ASME SA-556M标准制造，确保在高温高压环境下可靠的性能，在水进入锅炉前的预热中发挥着关键作用。

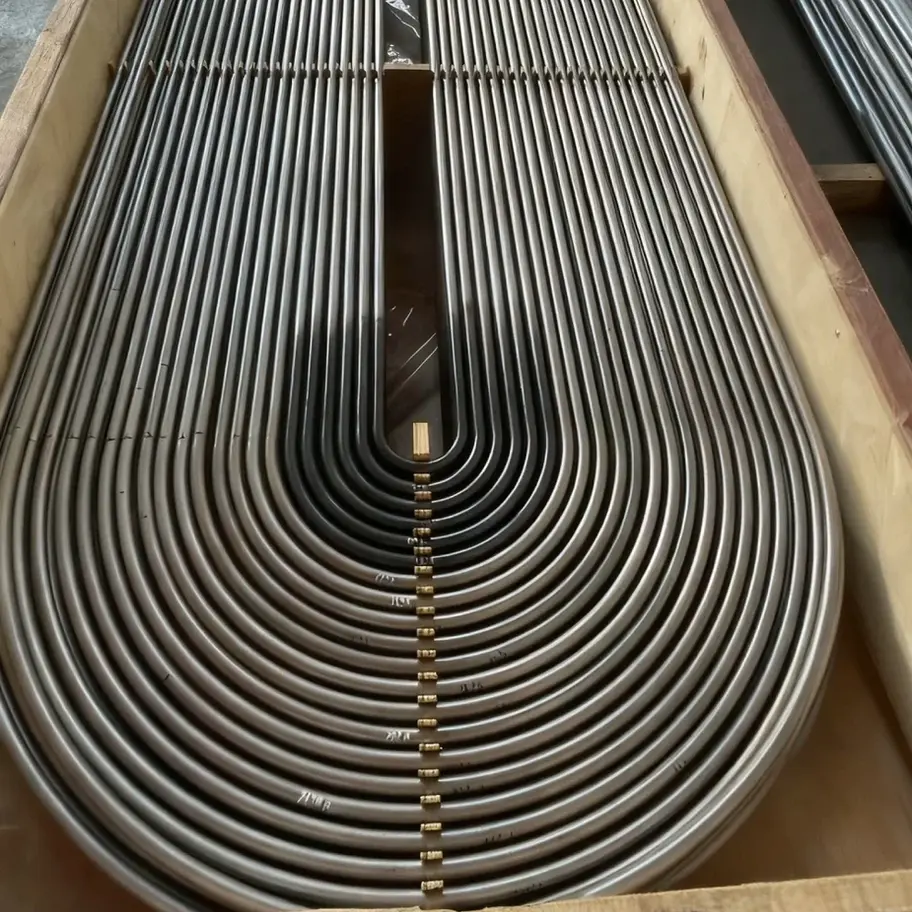

我们提供直管和可按指定弯曲成 “U”形的管。它们广泛应用于发电、石化、造船等工业部门，特别是必须承受苛刻运行条件的设备和系统。
技术规格
物品 | 规格 |
标准 | ASME SA-556M C2 级 |
制造流程 | 无缝和冷-拉 |
外径 | 12.7 毫米 - 38.1 毫米 |
壁厚 | 0.5 毫米 - 3.0 毫米 |
端面加工 | 平端、斜端、螺纹 |
热处理 | 管材应在最终冷-拉拔道次后在 1200 华氏度 [640 度] 或更高的温度下进行热处理，以确保延展性。 U- 弯管的-消除应力退火（如果指定）应在 1100 至 1200 华氏度 [585 至 640 度] 范围内。 |
表面处理 | 管子的内径和外径均涂有清漆，以防止运输过程中腐蚀。 |
壁厚：0.5mm-3.0mm | 外径：12.7毫米- 38.1毫米 |
主要特点和优点
符合国际标准：严格符合ASME SA-556M（相当于ASTM A556/A556M），确保全球质量认可。
优越的加工性：冷-拉拔工艺以及精确的热处理确保了优异的延展性，易于轧制成管板并满足指定的机械性能。
经验证的高-压力可靠性：专为高压给水加热器系统而设计，保证结构完整性和运行安全。{0}}
行业-经过验证的应用：中国市场300MW、600MW及以上发电机组高压加热器的首选材料，年需求量约1万吨。
灵活的供应解决方案：我们提供多种尺寸、最终处理和包装选项，以满足您的特定项目要求。
包装、标记和交付
包装：捆绑（六角形）、木箱、板条箱（钢/木），或根据客户要求，以防止在普通装卸和运输中损坏。
标记：清楚地标有标准、钢种、尺寸、炉号和批号，以实现完全可追溯性。
装运港：中国上海
付款条件：T/T（电汇）、L/C（信用证）
Product Properties
Chemical Composition of ASME SA-556M C2
Grade | C | Si | Mn | P | S | Cr | Mo | Ni | Cu |
SA-556M C2 | ≤0.30 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | 0 | 0 | 0 | 0 |
Mechanical properties of ASME SA-556M C2
Mechanical properties | Grade C2 |
Tensile strength, min, ksi [MPa] | 70 [480] |
Yield strength, min, ksi [MPa] | 40 [280] |
Elongation in 2 in. or 50 mm, min, % (longitudinal) | 30 |
Hardness | HR B 89 |
Technological Advantages & Quality Control
Technological Advantages
With nearly two decades of expertise, Huagang is recognised as a top precision seamless steel tube manufacturer. We integrate R&D, production, quality management, logistics, and global customer service, enabling customers to secure stable supply and consistent product performance.
Our long-term partnerships with global brands demonstrate our capability to meet rigorous quality expectations.
Adopting cold drawn precision seamless technology to ensure high dimensional accuracy, smooth surface, and uniform wall thickness of steel tubes.
After heat treatment and surface treatment, the mechanical properties and corrosion resistance of the steel tube are further improved.
Adopting cold drawn precision seamless technology to ensure high dimensional accuracy, smooth surface, and uniform wall thickness of steel tubes. | After heat treatment and surface treatment, the mechanical properties and corrosion resistance of the steel tube are further improved. |
Delivery Status:
Designation | Symbol | Description |
Cold drawn / hard | +C (BK) | After the last cold forming no heat treatment. |
Cold drawn / soft | +LC (BKW) | After the last heat treatment, follows the cold drawing there is a light finishing pass. |
Cold drawn and stress relieved annealed | +SR (BKS) | After the final cold drawing process, the tubes are stress-relieved and annealed in a controlled atmosphere. |
Annealed | +A (GBK) | After the last cold drawing process, the tubes are annealed in a controlled atmosphere. |
Normalized | +N (NBK) | After the last cold drawing process, the tubes are normalized in a controlled atmosphere. |
Quality Control
Strict Testing Chemical composition analysis: Ensure that the material composition meets the standard requirements. Mechanical performance testing: Including tensile testing, impact testing, etc., to ensure that the steel tube has sufficient strength and toughness. Non destructive testing: Using ultrasonic, eddy current, or radiographic testing techniques to detect internal defects in steel tubes. Hydraulic test: Each steel tube undergoes a hydraulic test to ensure good sealing and pressure bearing capacity in high-pressure environments. | Testing Standards Compliant with international standards such as GB3087, DIN17175, ASTM A53, ASTM A519, ASTM A106, ASTM A179, ASTM A192, etc. Each batch of products comes with detailed quality inspection reports and certificates of conformity. | Certification Guarantee Obtained ISO/TS16949:2009 quality system certification and obtained the national special equipment pressure pipeline component manufacturing license. |
